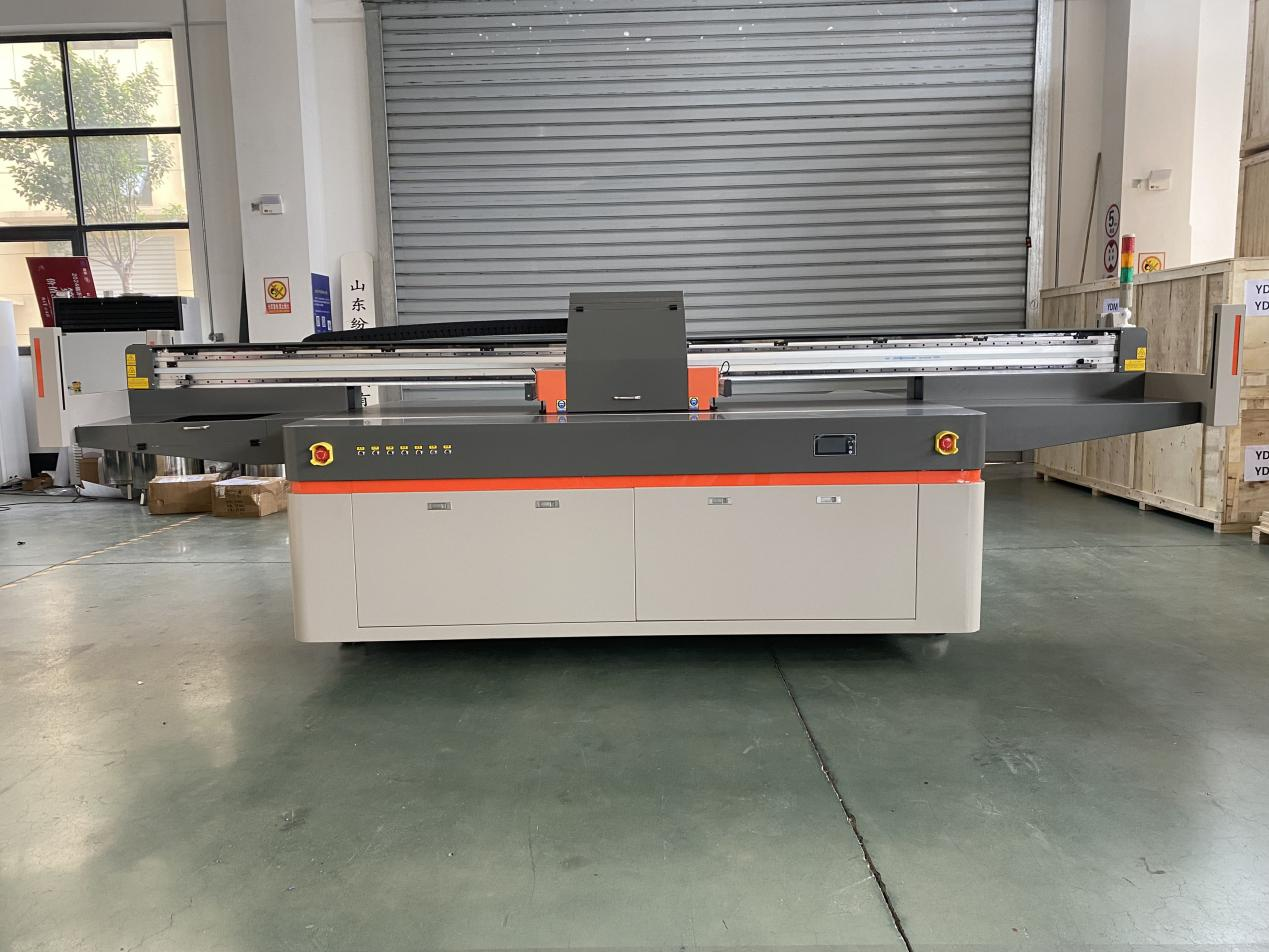

A UV printer is a digital flatbed printer that uses ultraviolet (UV) light to instantly cure (dry) special inks as they are printed. This allows for direct printing onto a vast array of materials (substrates), including plastic, wood, glass, metal, acrylic, leather, and even some ceramics.YDM UV Printer factory manufacture different printing size UV Printers for different printing requirements from customers.
How to operate the YDM UV Printers
1. Pre-Operation & Setup
Environment: Ensure the printing area is clean, well-ventilated, and at a stable room temperature (typically 20-28°C / 68-82°F). Low humidity is preferred.
Printer Preparation:
Power On: Turn on the printer and allow it to initialize.
Ink System Check: Verify ink levels. Perform necessary ink purges or priming if the printer has been idle.
Print Head Maintenance: Clean the print heads using the printer's cleaning routines and approved cleaning fluids to prevent clogs.
UV Lamp Check: Ensure the UV LED lamps are clean and functioning correctly.
Software Setup: Open your RIP (Raster Image Processor) software (e.g., PHOTOPRINT, ONYX, RIPRINT, or the printer's native software). This software is the core driver that manages color, prints queues, and printer settings.
2. File & Design Preparation
Design Creation: Create your design in graphic software (Adobe Illustrator, Photoshop, CorelDRAW). Use CMYK color mode.
Critical Adjustments:
Bleed: Extend backgrounds/colors beyond the cut line if needed.
Resolution: Set design resolution to 300-600 DPI for high-quality output.
White & Varnish Channels: If your printer has white ink (for printing on dark surfaces) or varnish ink (for glossy effects), you must create separate layers/channels in your design file to control them.
File Export: Save as a high-quality PDF, TIFF, or EPS, or import directly into the RIP software.
3. Substrate (Material) Preparation
Cleaning: Wipe down the substrate with isopropyl alcohol (or a suitable cleaner) to remove dust, oil, and static. This is crucial for ink adhesion.
Pre-Treatment: Some non-porous materials (e.g., glass, certain plastics, metals) require a liquid primer or coating to be applied beforehand to ensure the ink adheres properly. Allow to dry.
Fixturing: Secure the substrate to the printer bed. Use:
Vacuum Bed: For flat, non-porous materials.
Jigs & Holders: For 3D objects, bottles, or irregular shapes to ensure consistent height.
Double-Sided Tape: For lightweight items.
4. YDM UV Printer & RIP Software Configuration
Select Print Profile: In the RIP software, choose the correct profile for your specific printer model, ink type, and substrate. Using the right profile is essential for color accuracy and adhesion.
Set Parameters:
Print Mode/Quality: Choose between draft, standard, and high-quality (which affects speed vs. detail).
Print Height (Z-offset): Calibrate the print head distance from the substrate (usually 1.5-3mm). This is critical for print quality and preventing head strikes.
Passes: Set the number of ink layers (more passes = richer color, slower speed).
Curing Power: Adjust UV lamp intensity (usually 80-100%). Higher power ensures full curing but can generate more heat.
Color Management: Apply ICC profiles for precise color matching if needed. Perform a test print to check colors.
5. Printing Process
Send to Print: Queue the job in the RIP and send it to the YDM UV printer.
Monitor the First Pass: Watch the initial layer to ensure everything is printing correctly (alignment, ink ejection).
Automated Process: The printer will deposit ink, and the UV lamps will instantly cure it layer by layer. For full-color images with white underbase, it typically prints white first, then CMYK colors on top.
Avoid Interruptions: Do not stop the printer mid-job unless necessary.
6. Post-Processing & Finishing
Ink Curing Check: While UV-cured, touch the print to ensure it's completely dry. Some inks require 24 hours to reach full adhesion strength.
Post-Curing (Optional): For maximum durability (e.g., items for outdoor use), some prints may be placed in a UV curing chamber for additional curing.
Finishing: Apply any secondary processes: laminating for protection, contour cutting (if using a hybrid printer), or assembly.
These are only the general operation and maintenance task, YDM Service team will provide the professional instructions for installation and operation online freely. For all of UV Printers, we will do final printing test before dispatch, so the later task will be much simple, no much worry. Welcome your inquiry to YDM UV Printers .
