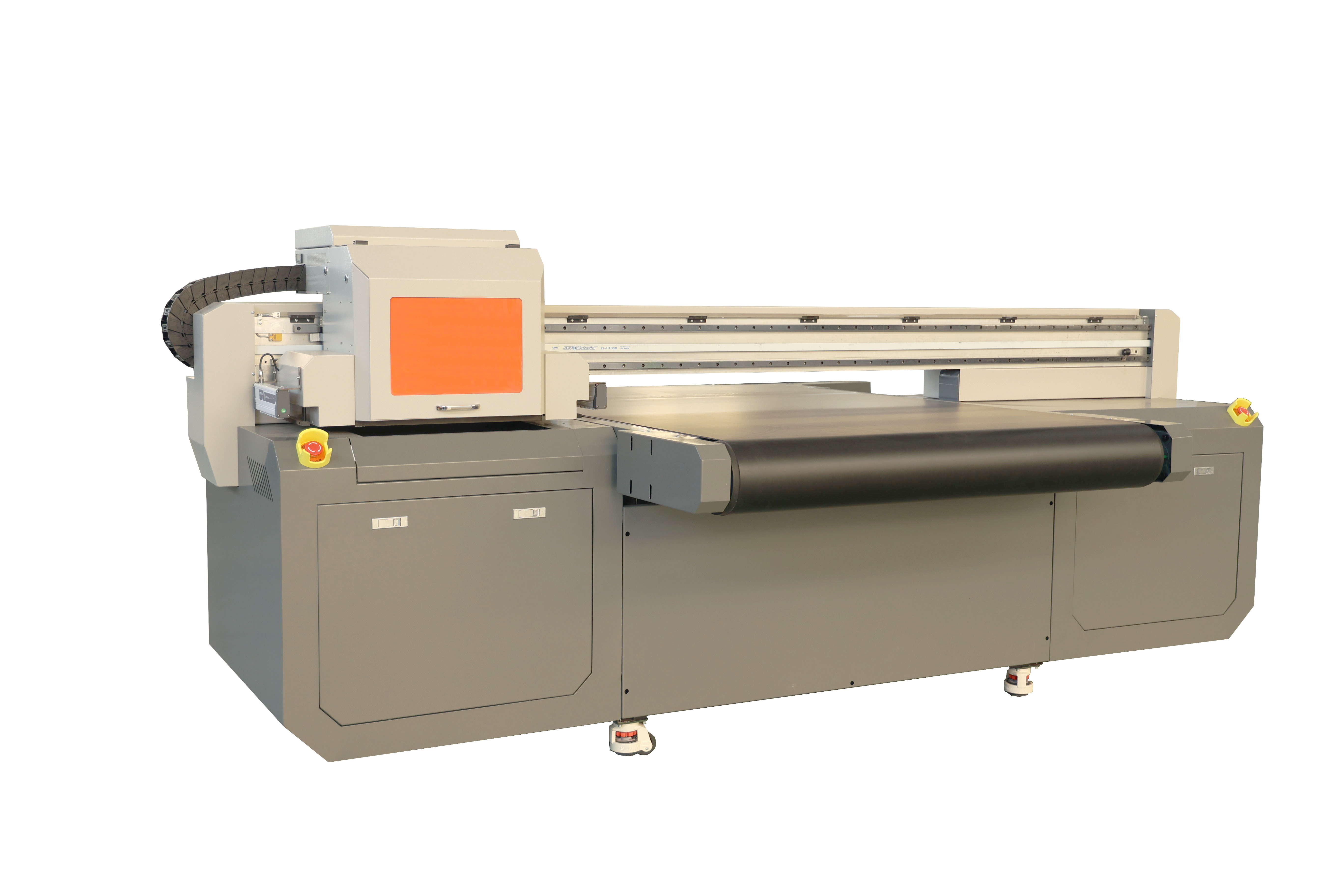

YDM D1250 Non-stop Visual UV Printer
The “Non-stop Visual UV Printer” is an intelligent UV printing device that integrates machine vision positioning with assembly-line transmission technology, enabling simultaneous scanning and printing without downtime. Its core advantage lies in utilizing a machine vision system that equips the machine with “eyes,” replacing manual alignment and fixture fixation, thereby overcoming the efficiency bottleneck caused by frequent stoppages in traditional printing processes.
Core Operating Principle: The three-step cyclic YDM UV visual printer achieves efficient operation through coordinated processes: 1. Dynamic scanning and visual positioning: A high-precision camera (e.g., a 4K line-scanning camera) captures real-time images of products on the conveyor belt, while AI algorithms calculate each workpiece’s contour, position, and angle within milliseconds.
2. Data Processing and Trajectory Generation: Upon receiving location data, the software system automatically adjusts the orientation of the printing pattern and generates a customized printing trajectory for each workpiece, ensuring the pattern is precisely positioned at the designated location.
3. Online Instant Printing and Curing: The print head performs contactless inkjet printing synchronously with the workpiece’s movement based on the generated trajectory, followed immediately by curing using UV-LED lamps. Additionally, some high-end equipment is equipped with a real-time printing quality inspection system that conducts quality checks instantaneously via cameras and automatically rejects defective products.
Key Features and Advantages: High-precision positioning: Repetitive positioning accuracy reaches ±0.01mm to ±0.1mm, with maximum image resolution of 2400 dpi.
Continuous high-efficiency production: Supports 24/7 continuous operation with an equipment utilization rate approaching 100%.
No fixtures required, disorganized placement: No need for expensive custom molds or fixtures; workpieces can be positioned at any angle on the conveyor belt, significantly enhancing production flexibility and reducing upfront costs.
Intelligent Maintenance: Features automatic nozzle maintenance and fault early-warning capabilities, combined with user-friendly visual software, significantly reducing reliance on skilled technicians.
Main Application Areas: 3C Electronics – Logo and pattern printing for precision electronic components such as phone cases and headphone charging cases.
Advertising Packaging: Production of various personalized packaging boxes and advertising materials such as PVC.
Cultural and creative gifts: Mass customization of cultural and creative products such as bookmarks, keychains, and plaques.
Home decoration: Custom printing of decorative items such as paintings and soft-backed wall panels.
In summary, the YDM Non-stop Visual UV Printer is a product of the deep integration of automation and intelligent technologies in industrial printing, making it particularly suitable for applications requiring high efficiency and flexible production.
Post time: Apr-23-2026
